HKS Hipermax Touring Height-Adjustable Springs – 2020+ Toyota GR Supra A90 (B58 3.0T / B48 2.0T)
- Description
Height-adjustable lowering springs for the 2020+ Toyota GR Supra A90 that keep your factory adaptive dampers intact. HKS engineered the Hipermax Touring kit specifically for the B58/B48 platform, giving you a properly matched aggressive drop and adjustable stance without needing a $2,500+ coilover, an error canceler, or a permanent damper swap. Real owners consistently report ride quality that feels close to stock in comfort mode, with sharper turn-in and less body roll when you hit sport mode.
This is the spring kit HKS's own project car runs. It's the one Vivid Racing, Speed Industry, and most reputable A90 shops recommend as the sweet spot between a fixed-drop Eibach Pro-Kit and full coilovers. If you want your Supra sitting right, keeping the ride you paid for, and having room to fine-tune later — this is it.
Why Hipermax Touring vs everything else
- Adjustable drop, not fixed. Dial in your stance from a mild -25mm to an aggressive -48mm front, -20mm to -53mm rear. Eibach and H&R lock you into one height.
- Factory adaptive dampers stay in the car. No Suspension Error Canceler required (HKS built the spring rates around the OEM damper curve). KW V1/V3 requires their $500 canceler kit and disables adaptive control.
- Includes upgraded rear bump rubber and dust boots engineered specifically for the lowered A90 geometry — most spring kits reuse the stock ones and end up with premature wear.
- Fits every A90 trim except SZ (Japan-market 2.0L base). RZ, SZ-R, A91, A91-MT (manual transmission), 45th Anniversary, all confirmed.
- OEM-quality construction, patent-pending ride height adjuster — HKS Japan-made, not white-labeled.
Full specifications
| Spec | Front | Rear |
|---|---|---|
| Spring rate | 4.3 kgf/mm (42.6 N/mm) | 11.9 kgf/mm (116.8 N/mm) |
| Drop range | -25mm to -48mm (approx 1.0" to 1.9") | -20mm to -53mm (approx 0.8" to 2.1") |
| Factory preset (DB42/DB02, RZ) | -25mm | -20mm |
| Factory preset (DB22, SZ-R B48) | -16mm | -19mm |
Fitment
- Toyota GR Supra A90/A91 — 2020, 2021, 2022, 2023, 2024, 2025
- Engines: B58 3.0L (DB42, DB02, DB06) and B48 2.0L (DB22 SZ-R)
- Trims: Base, Premium, A91 Edition, A91-MT (manual), 45th Anniversary, Launch Edition
- NOT compatible with SZ grade (Japan-market base 2.0L). All US-market A90s are supported.
- MPN: 80280-AT001

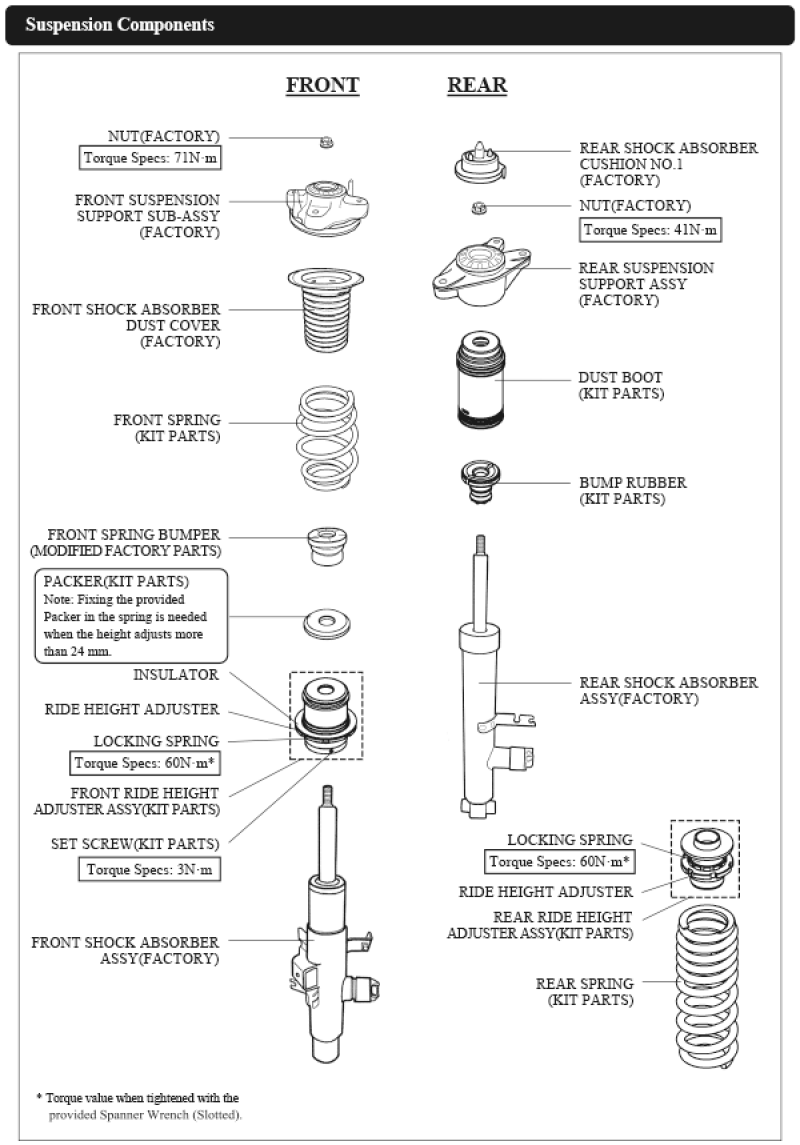

What's in the box
- 2x front springs (specially developed, progressive/variable-pitch)
- 2x rear springs
- 2x front ride height adjuster assemblies
- 2x rear ride height adjuster assemblies
- 2x HKS-developed rear bump rubbers
- 2x HKS-developed rear dust boots
- 2x packers (for front drops greater than 24mm)
- Hook wrench, 3mm hex wrench, silent tubes, hardware, HKS warranty registration
Install notes — read before you buy
This is a straightforward install for a competent DIYer or any performance shop, but there are two things HKS requires that catch first-timers off guard:
- You must trim the OEM front bump stop when adjusting the front drop past -17mm (most people run more than that). It's a foam-style stop — a razor blade takes ~30 seconds per side. A replacement OEM stop is available if you ever revert.
- The included packer must be installed when the front thread adjustment exceeds 24mm. Below 24mm, remove the packer. HKS's included manual walks through the exact measurement.
Alignment is required after install — the drop changes camber and toe. Budget for it.
Installation is straightforward with a spring compressor. Torque specs are printed in the HKS manual. Kinetic Autoworks installs these in-house — request an install quote.
Real owner feedback (from A90 forums)
- "Really impressed with my Hipermax obvs looks but I feel ride has actually improved over OE springs" — SupraMKV forum
- "Ride quality is similar to stock (comfort mode). Can't really tell any difference from stock when driving it on the road (even on bumpy back roads and drifting it round roundabouts in the rain)" — SupraMKV forum
- "Visually, this installation was absolutely essential... it still maintains a very stock feel. Ride remains smooth and comfortable, and it feels more stable when taking corners." — r/Supra
How it compares
| Option | Adjustable | Keeps OEM adaptive dampers | Needs error canceler | Price range |
|---|---|---|---|---|
| HKS Hipermax Touring (this kit) | Yes (23mm range) | Yes | No | ~$1,000 |
| Eibach Pro-Kit | No (fixed drop) | Yes | No | ~$400 |
| H&R Sport | No (fixed drop) | Yes | No | ~$350 |
| KW V3 Coilovers | Yes (full) | No (replaces) | Yes (+$500) | ~$2,400+ |
| KW DDC Plug & Play Coilovers | Yes (full) | Retains control | No (integrates) | ~$3,800+ |
Frequently asked
Will this work with my A91-MT (manual transmission) Supra?
Yes. HKS confirmed fitment on the A91-MT during their own conformity check. Ride height and spring rates are identical to the automatic RZ.
Do I need the HKS Suspension Error Canceler (45012-AT001)?
No. Unlike KW V1/V3 coilovers, the Hipermax Touring works with the factory adaptive damper system without triggering error codes.
Will I lose adaptive damper functionality (Sport/Comfort modes)?
No. The OEM electronic dampers stay in the car and continue to function on both modes.
How does it compare to just running Eibach Pro-Kits?
Eibach gives you a fixed 1.7"/1.2" drop for about $600 less. HKS gives you adjustability (dial in exact wheel gap), OEM-matched spring rates, and includes the upgraded bump stops/boots that Eibach doesn't. If you're running the OEM staggered wheel setup and just want a mild drop, Eibach is fine. If you're going wider wheels/spacers or want to fine-tune stance later, HKS pays for itself.
Do I need a corner balance?
Not required, but recommended if you're setting an aggressive drop. A standard 4-wheel alignment is required.
How aggressive does it look at max drop?
At -48mm/-53mm you're basically at coilover-level slam. Most owners settle around -30 to -35mm front / -35 to -40mm rear for the "OEM+" look with no wheel gap.
Kinetic install & support
Kinetic Autoworks installs the HKS Hipermax Touring on A90s regularly — bump stop trim, packer setup, alignment, and a test drive included. If you're local to the Baltimore/DC/Northern Virginia area, request a quote. Buying to install yourself? Text us for questions during your install. We stock this part.
