Wagner Tuning Stainless Downpipe Kit #500001027 (US Model, 200-Cell) – 2020-2025 Toyota GR Supra A90 (B58 3.0T)
- Description

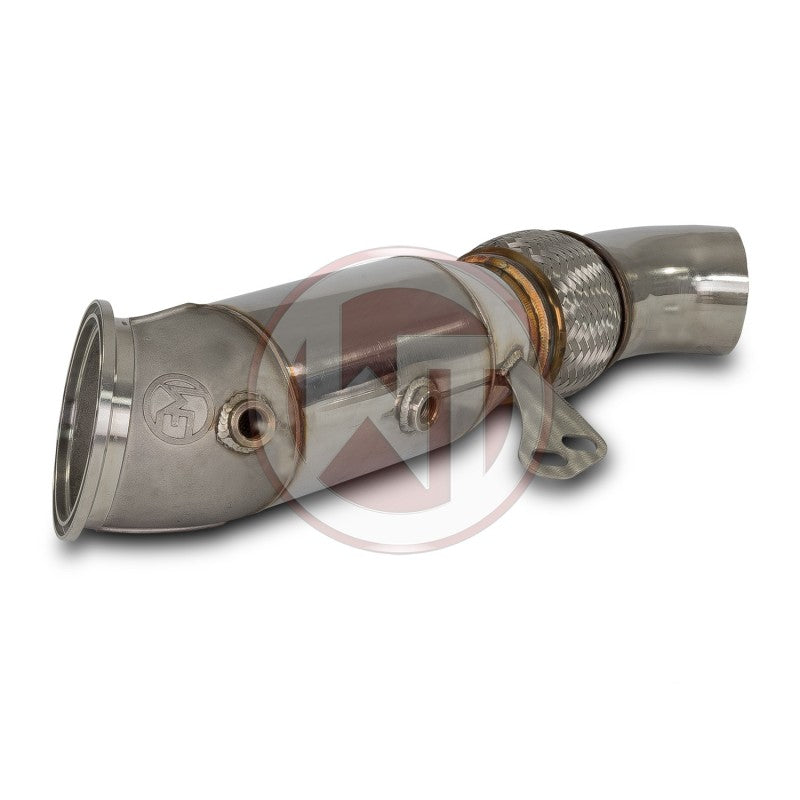

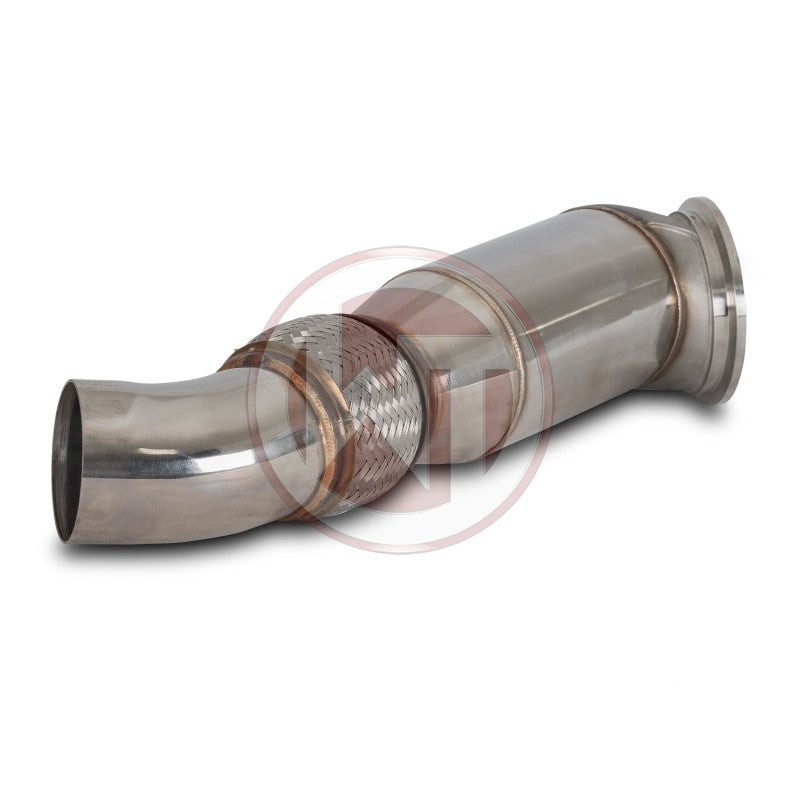

Wagner Tuning Stainless-Steel Downpipe for the A90 Supra — B58 Turbo Freed From OEM Backpressure
The factory B58 downpipe on the 2020+ Toyota GR Supra A90 is a heat-soaked, close-coupled cat that chokes turbo spool the moment you ask the car for real boost. Wagner Tuning's 200-cell stainless downpipe replaces it with a mandrel-bent T304 kit that flows freely without throwing check-engine lights on a properly tuned car. You keep street driveability and emissions-legal appearance, and you unlock the exhaust-side airflow every A90 tuner needs before spring rate on boost matters.
Why the Factory Downpipe Holds a Tuned A90 Back
The OEM B58 cat runs a dense-cell substrate mounted directly to the turbo housing. It was engineered for cold-start emissions and cabin quietness, not for the sustained exhaust volume a Stage 1 or Stage 2 tune generates. On a stock ECU you may not feel it. Once you flash MHD or bootmod3 and start commanding 22–24 psi, the OEM downpipe becomes the single largest restriction in the exhaust path — spool slows, exhaust gas temperature climbs, and the turbo works harder for the same peak boost target.
Tuners consistently report that the same map on the same fuel gains real crank power just by removing the OEM downpipe restriction, because the turbo finally sees a normal exhaust pressure delta. This is the highest-leverage $950 exhaust mod you can make before touching the turbo itself.
What Changed vs. OEM

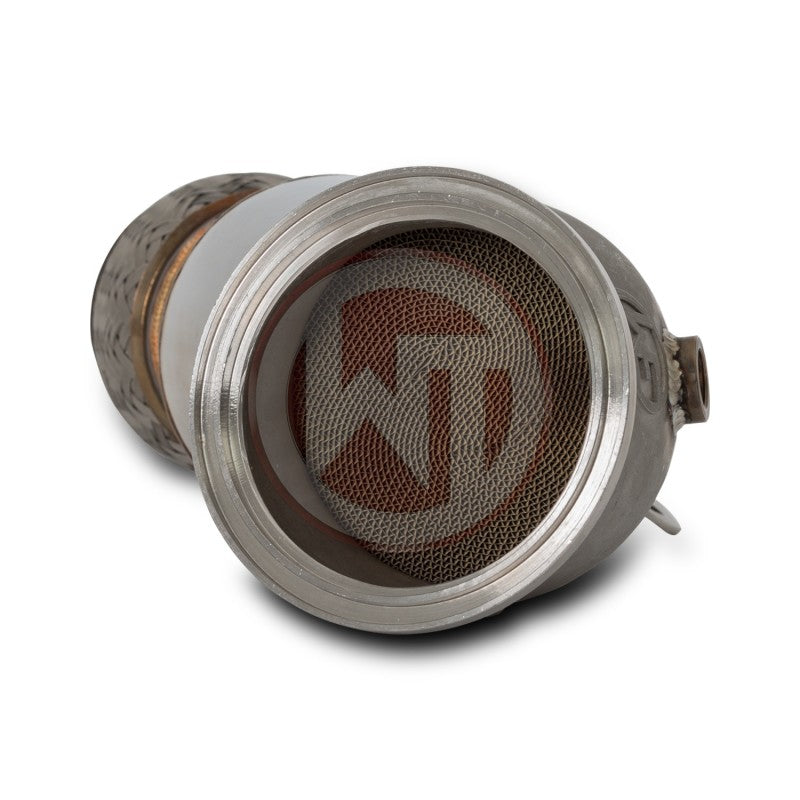

- 200-cell GESI-style metallic catalyst — flows dramatically more than the OEM dense-cell substrate while retaining catalyst function for emissions and CEL suppression on a properly tuned map.
- Mandrel-bent T304 stainless steel — no crushed bends, no wall thickness variance. Smooth interior surface maintains exhaust velocity.
- 3.0" (76mm) inside diameter — matches the B58 turbine outlet without step-down restriction.
- TIG-welded flanges and V-band clamps — sealed, serviceable, and rebuildable. No slip-fit joints to leak under thermal cycling.
- Direct OEM fitment — bolts to the factory cat-back or any aftermarket A90 exhaust. Uses OEM O2 sensor bungs in stock locations.
- US-model specific — designed for the North-American B58 (non-OPF/GPF). If your Supra has an OPF/GPF (2023+ European or Japanese-spec cars), you need the OPF-compatible variant.
Verified Performance Gains
| Setup | WHP Gain vs Stock DP | WTQ Gain vs Stock DP | Source |
|---|---|---|---|
| Stage 1 (91 oct) + Wagner DP | +15–25 whp | +30–45 wtq | MHD OTS B58 map notes |
| Stage 2 (93 oct) + Wagner DP + intake | +45–70 whp over stock | +60–90 wtq over stock | Wagner Tuning dyno chart, B58 300cell reference |
| E30 blend + Wagner DP + supporting mods | 500+ whp typical ceiling on stock turbo | 500+ wtq | SupraMKV E85 build threads, VTT / MST reference dynos |
Numbers vary by fuel quality, tune, intake, charge pipe, and dyno type. Wagner's own downpipe reference dyno shows meaningful area-under-curve gains from 3,500 rpm through redline — the driveability gain is larger than the peak-number gain.
Full Specifications
- SKU: WGT500001027SUPRA.200CPSI
- Material: T304 stainless steel, mandrel-bent
- Catalyst: 200-cell metallic substrate (GESI-style high-flow)
- ID: 3.0" (76mm)
- Connection: V-band turbo flange + slip-fit to OEM/aftermarket cat-back
- O2 bungs: Retained in OEM positions (pre- and post-cat)
- Emissions: Cat-equipped, non-EO / off-road use in CARB states — check local laws
- Fitment note: US-model / non-OPF/GPF B58 only. Not for OPF/GPF (2023+ EU/JDM).
Fitment
Fits:
- 2020–2025 Toyota GR Supra A90 3.0 (B58 engine, US-model, non-OPF)
Does NOT fit:
- A91 Supra 2.0 (B48 4-cylinder — completely different exhaust)
- OPF/GPF-equipped B58 Supras (2023+ EU/JDM/Australia — need OPF variant)
- BMW G-series M340i / M440i / Z4 M40i — those need the G2X-specific Wagner downpipe

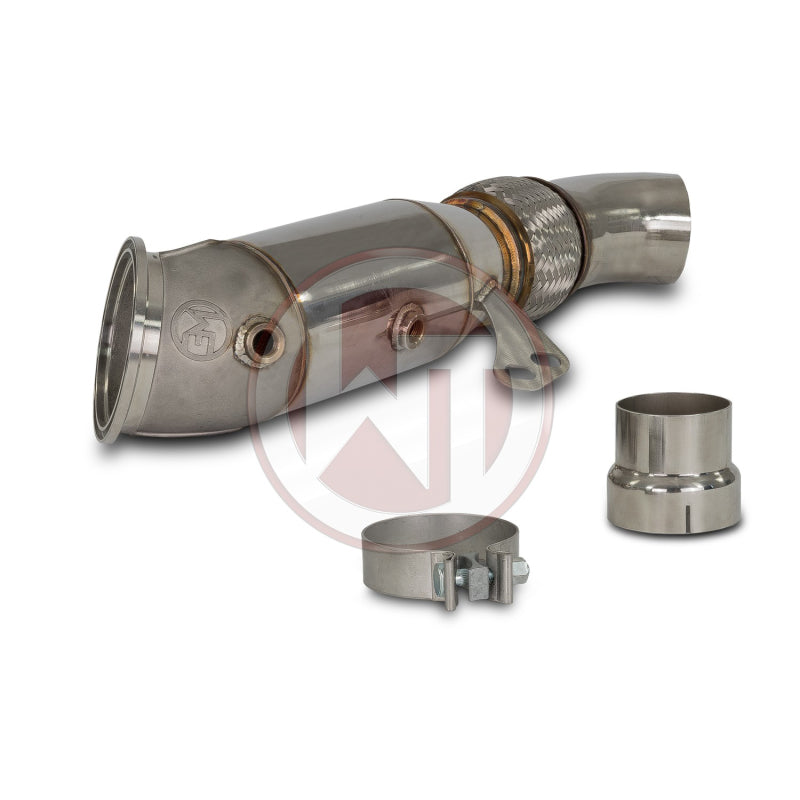

What's In the Box
- Wagner Tuning 200-cell stainless downpipe assembly
- V-band clamp for turbo flange
- Exhaust gasket (turbo-side)
- Hardware pack (studs / nuts if required for your build year)
Note: Some builders reuse OEM turbo studs. Inspect condition before install — replace if pitted or stretched.
Install Notes (Real Gotchas)
- Get the car in the air properly. This is a two-post lift or full quad-jack job. Do not do this on ramps — you can't get to the turbo V-band from underneath without dropping the front subframe or hooking a lift.
- Undo the flex-joint downstream first. The OEM downpipe fights you if the cat-back is still under tension. Loosen the mid-pipe hangers before you touch the turbo flange.
- Turbo studs seize with heat cycles. Soak them with penetrating oil the night before and use a 6-point socket — a 12-point will round them.
- Reindex the O2 sensor. Anti-seize the threads and torque to spec. Cross-threading a B58 O2 bung is a $$$ mistake.
- Flash your tune BEFORE you drive. A stock ECU with this downpipe will throw a P0420 CEL within a few miles. MHD, bootmod3, or a custom map is a required paired install.
- Heat wrap is optional. The 200-cell design already sheds heat better than OEM. Wrap only if you're running an intake close to the turbo hot side.
Do You Actually Need This?
| Your setup | Should you buy? | Why |
|---|---|---|
| Stock ECU, no tune planned | No | You'll throw a CEL and lose OEM torque management. Save the money for a tune first. |
| Stage 1 (MHD/BM3) on 91 oct | Optional | Nice gain but the tune alone gets 80% of the benefit. Come back after intake. |
| Stage 2 on 93 oct or E30/E40 | Yes | OEM downpipe is now the primary restriction. This is the next mod. |
| Chasing 500+ whp / E85 | Required | Stock DP is unsafe at those EGTs and boost targets. |
| Track / autocross car | Yes | Sustained boost loads make DP flow critical for EGT management. |
FAQ
Will this throw a CEL?
With a proper tune (MHD, bootmod3, or Ecutek) that has the rear O2 monitor disabled or adjusted, no. On the stock ECU, yes — expect a P0420 within a few drive cycles.
Is it emissions-legal?
It has a 200-cell metallic cat, so it passes visible-inspection states. It is not CARB-EO certified. For CARB / sniffer states, verify local requirements.
Do I need a full cat-back too?
No. It bolts directly to the OEM cat-back or any aftermarket A90 mid-section. Adding a cat-back is a sound / weight / aesthetic decision, not a horsepower one.
Wagner vs. Active Autowerke vs. MST — which is better?
All three are enthusiast-tier "no-CEL" downpipes. Wagner uses V-band flanges and slightly heavier-wall construction; Active Autowerke's GESI unit has the strongest CEL-suppression track record; MST is the price-leader. For a US-model A90 built for street + occasional track, Wagner is the pragmatic middle.
How loud does it get?
Adds 2–4 dB at idle over OEM, more character on cold start, and a noticeably crisper spool sound under load. Not disruptive on the stock cat-back. Loud only when paired with a muffler-delete cat-back.
Will it fit with the KLM race dual-outlet exhaust I already have?
Yes, as long as your cat-back uses the OEM downpipe slip-joint diameter. Almost all A90 cat-backs (KLM, HKS, Akrapovic, Fabspeed, ETS) match.
Kinetic Install & Tuning
Kinetic Autoworks installs the Wagner downpipe with a fresh MHD or bootmod3 flash tuned for your fuel of choice and datalogged on our dyno cell. The installed price includes new turbo studs, high-temp anti-seize on the O2 sensor, and a pre/post datalog to verify no code faults, correct AFR under boost, and clean spool. Every A90 downpipe install leaves the shop with a printed dyno sheet and a copy of the log. Book a slot — contact us or call the shop directly.
